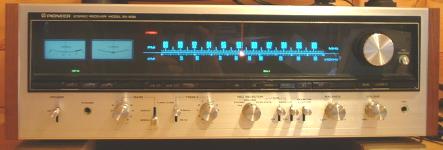

Pioneer SX-838

Sx 838 Dscf0002
Specifications (1974-1975)
Power output RMS (20Hz-20kHz)50WPC (8 ohm) 60WPC (4 ohm)
THD 0.05-0.3%
Damping factor (8ohm, 1kHz) >45
Tuner sens (FM) 1.8uV, sel 80dB, s/n 70dB
Tuner distortion (FM) Mono <0.2%, Stereo <0.4%
Weight 22.5lb
Cost when new $499

Pictures

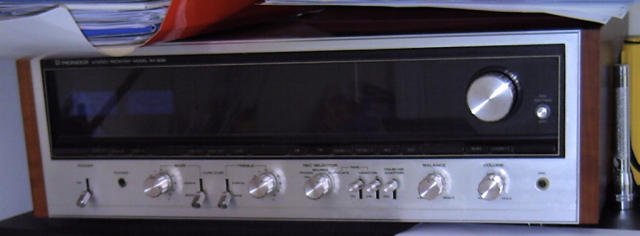

PICT0020 1 (125.5kB)
PICT0020 1 (125.5kB)


Schematics

Sx 8380001 (433.7kB)
Sx 8380001 (433.7kB)
